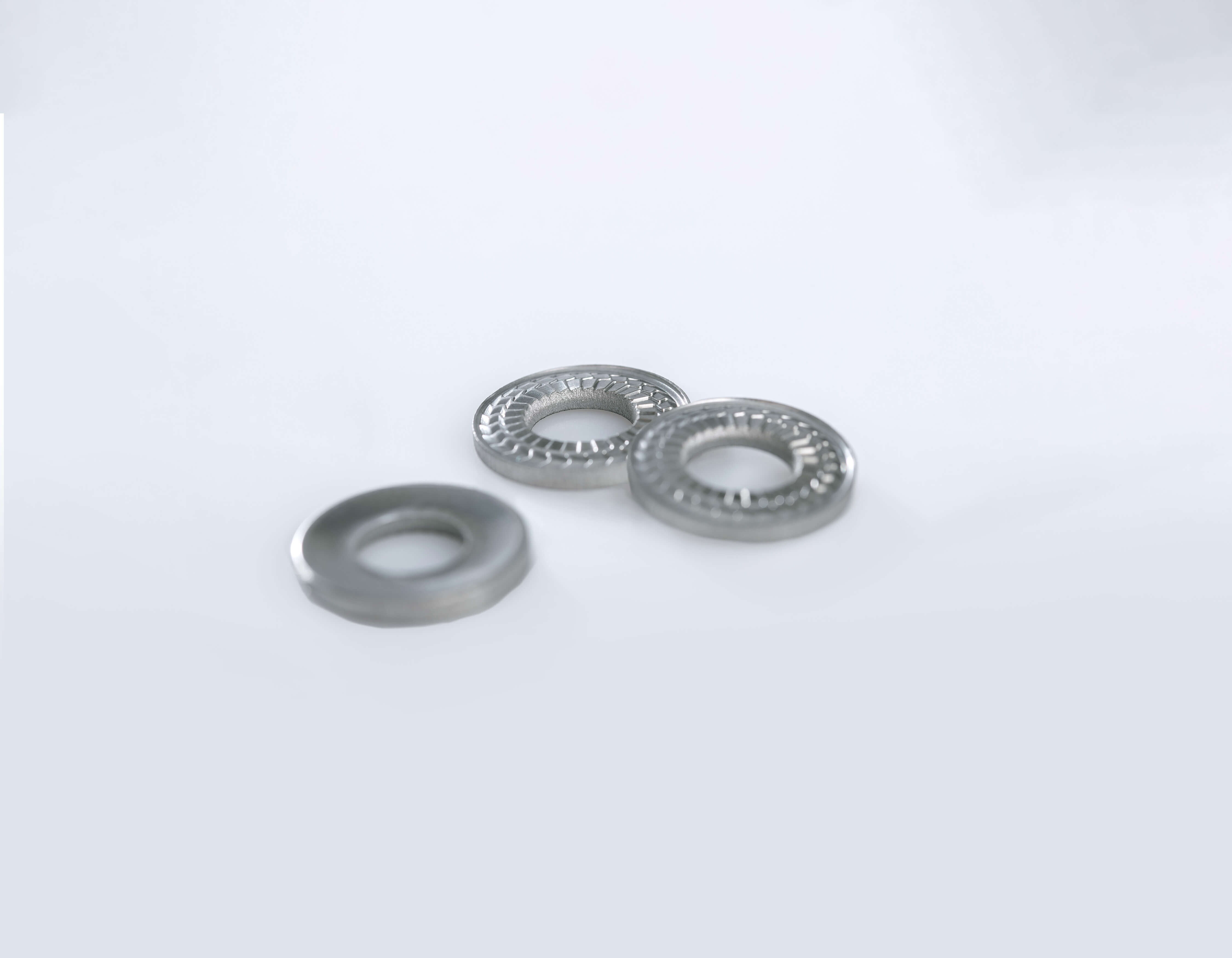

NSK-ELElectrical contact screw fittings for slotted hole fastenings

NEW Available from 1.3.2025

Areas of application

  • Electrical contact glands
  • Earthing and equipotential bonding applications with conductors (without penetrating insulating layers)
  • Fastening solutions with copper, aluminium, stainless steel, plastic materials or coated surfaces and low preload forces

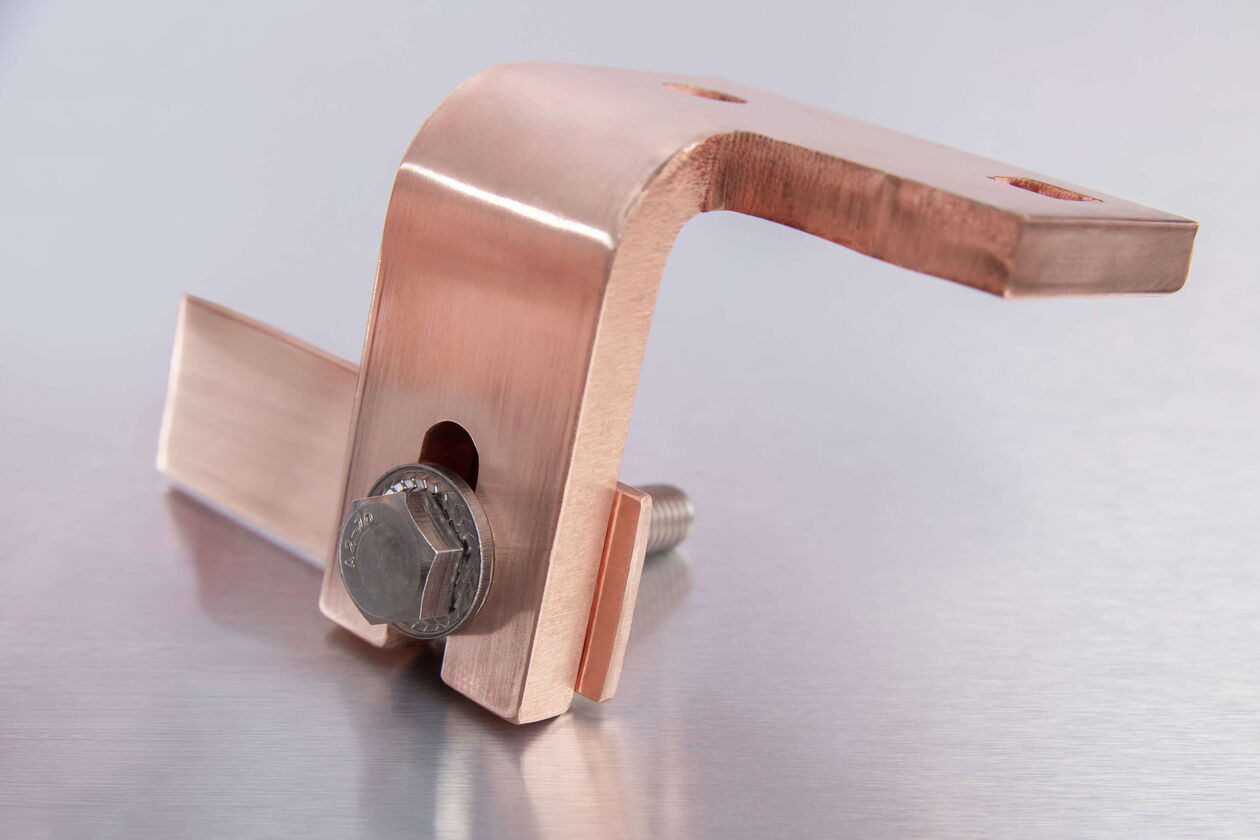

  • Circular hole & slotted hole applications

Special features

  • One-piece and easy to install
  • Anti-loosening and anti-rotation lock
  • Specially adapted to the preload forces of electrical contact screw connections
  • Protection of the conductor material and uniform pressure cone
  • Complies with the current state of the art, including the standard requirements DIN 25201-3, DIN 43673, DIN 46206, DIN EN 50343, DIN EN 60204-1, DIN EN 61439-1, (NEW) DIN EN 17976 (NEW) …
  • Recommended by Deutsche Bahn

Comparison of possible solutions for electrical contact glands

  Spring/profile Locking edge ring1
Spring washer2 with washer
Wedge disc pairs
(flat design)
Wedge disc pairs
(conical design)
Clamping disc
(DIN6796)
NSK-EL
Damage to the mating layer / conductor materials
Uniform contact pressure
Defined / reproducible contact pressure (coefficient of friction)
Compensation of slackening effects3
Compensation of loosening effects4
Installation effort and risk
One-piece threadlocking solution5
Acquisition costs compared to washer DIN 1256
1 DIN 127, 128, 6905, 7980 etc.
2 DIN 137, 6904
3 in accordance with VDI 2230, DIN 267-26, EN 43673
4 in accordance with DIN 65151 / DIN 25201 - 4
5 according to pr EN17976
6 same / higher / high

Technical information

  Spring steel C60
EN 1.1211
Stainless steel A41
EN 1.4401
Other materials EN 1.4547, EN 2.4819, EN 2.4668 (on request)
Hardness / Strength ≥ 430 HV10 ≥ 595 N/mm2 depending on material
Coating Zn/Ni - -
Corrosion protection Min. 720h in the salt spray test (according to ISO 9227) PREN 27 depending on material
Temperature range -40°C bis 150°C -40°C bis 150°C depending on material
Screw quality max. 8.8 up to and including
A4-80
depending on material
Dimension range M8 - M12 M8 - M12 as required
1 can also be used for stainless steel A2 screws, e.g. EN 1.4301 or EN 1.4310

Applications

Railway Industry
Elevators

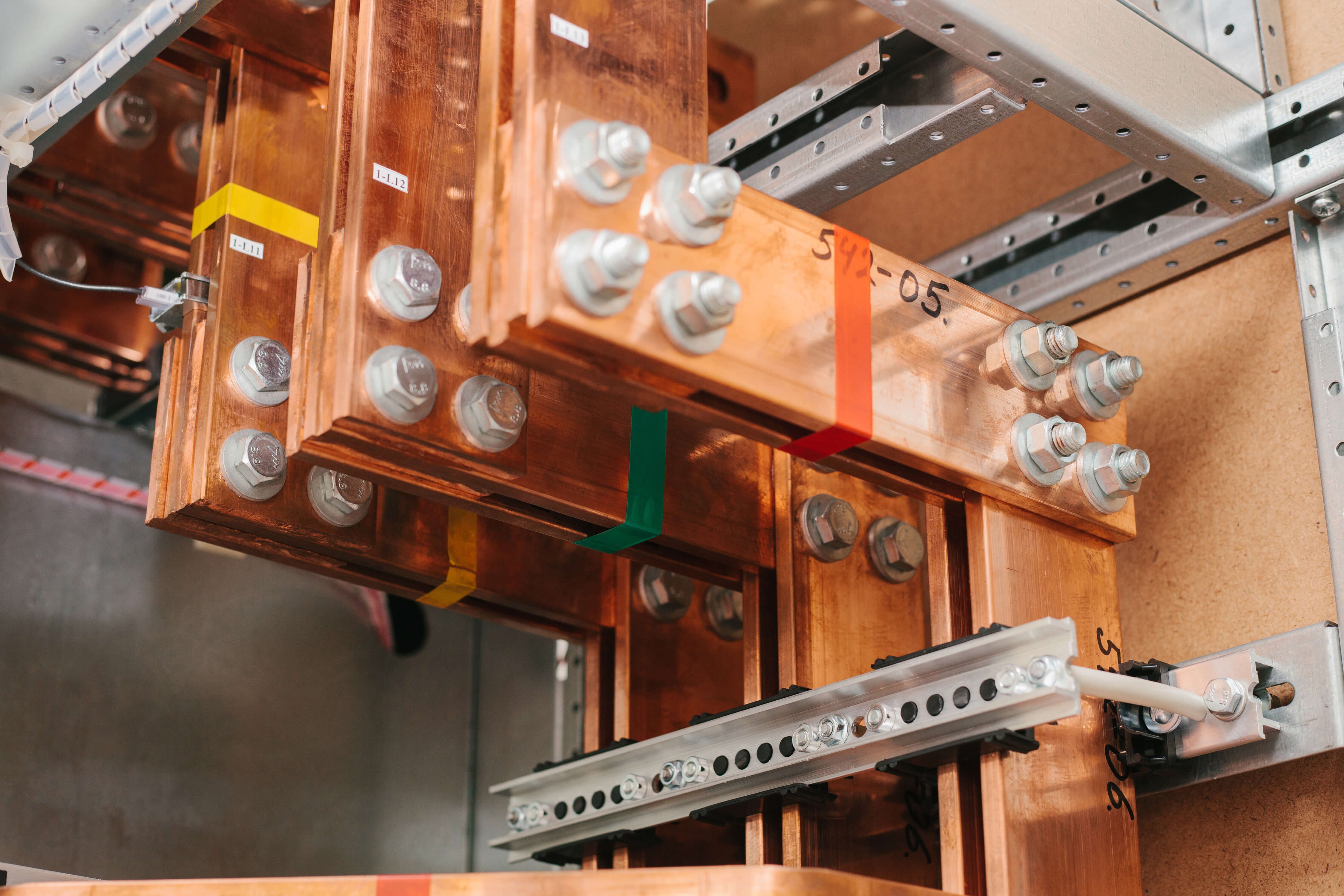

Switchgears

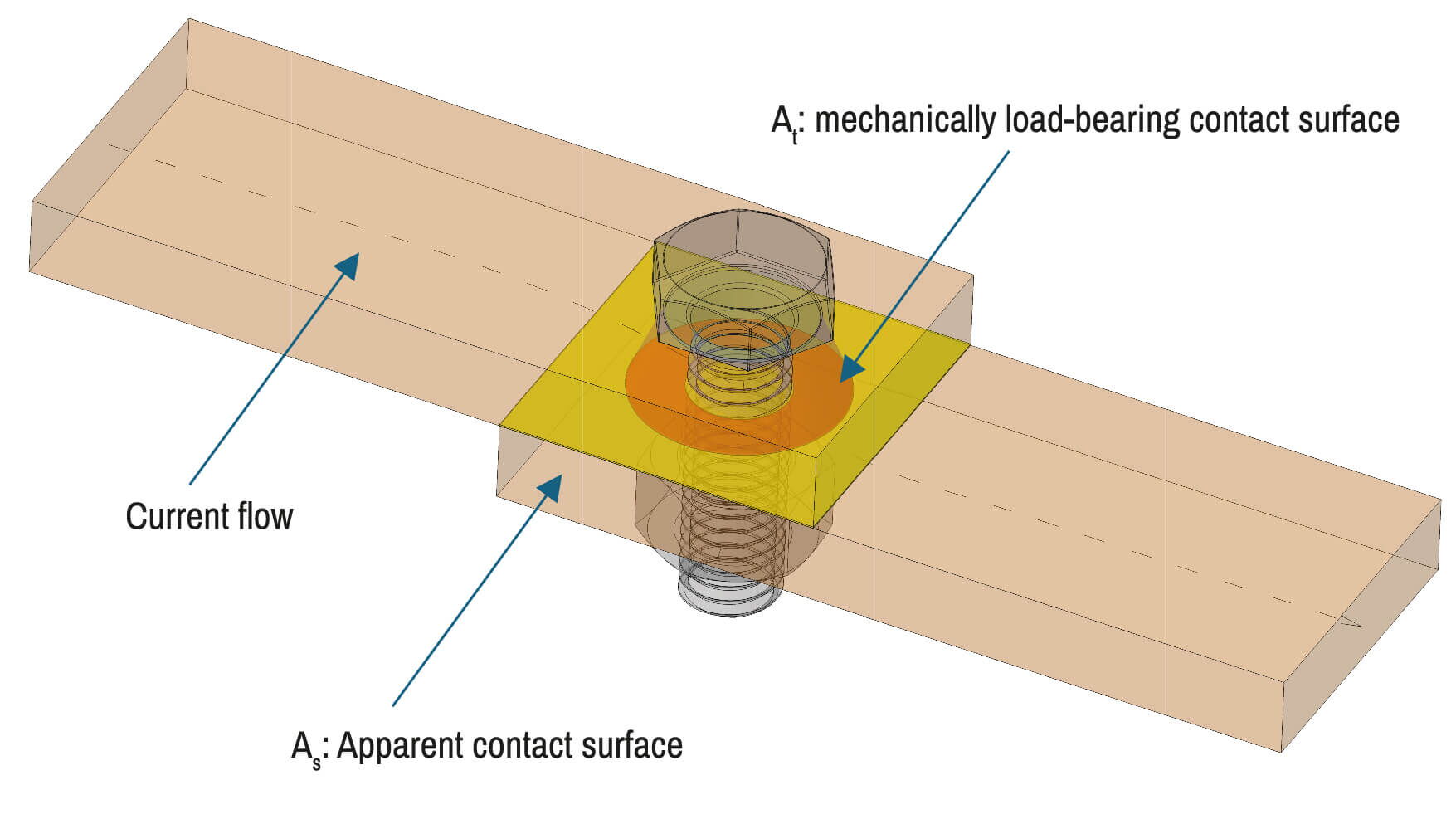

How do electrical contact fittings work?

Current flow
The current flows via the contact surfaces of the conductor materials, not via the screw connection. The screw connection ensures the lowest possible contact resistance with the contact pressure.

Contact surfaces
The contact resistance of the connection depends on the contact pressure over the entire surface. A low contact resistance / good current flow only exists at the surface areas with high, uniform contact pressure.

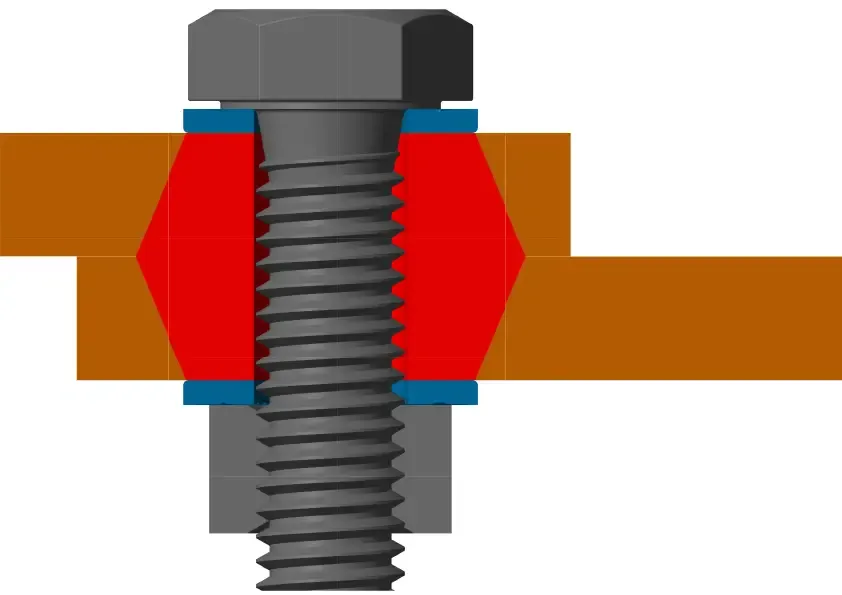

Deformation cone of a centre-braced through-bolt connection (schematic)

What are the special challenges of electrical contact fittings?

  • Reduced tightening torques / preload forces
    • Due to the lower limit yield stress of the conductor material, only lower preload forces are possible
  • Connection-side force reduction of the soft conductor materials
    • Stronger setting behaviour of soft conductor materials and coatings
  • Long-term behaviour of the material
    • Plasticisation and relaxation
    • Creep phenomena
    • Electrochemical corrosion
  • Functional and ambient conditions
    • Natural frequencies of the conductors
    • Transfer of the vibrations of the overall systems to electrical conductors
  • Thermally induced relative movements transverse to the screw axis
    • Due to the high expansion coefficients of the conductor materials
    • Applies in particular to conductor rails connected at an angle to each other

In the case of electrical contact screw connections, there is a collective of causes that can lead to loosening and unscrewing effects or decreasing contact pressure and heating/short-circuiting.

Why do screw connections come loose?


How does an NSK-E work?

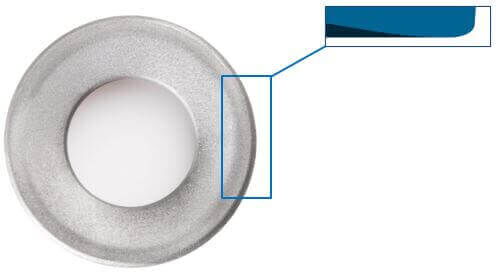

Force-locking effect with curved geometry matched to the preload force depending on the strength class

  • Increases the flexibility of a bolted joint
  • Prevents slackening effects and supports the locking effect against selfacting loosening

Form locking effect due to the interlocking under the screw head or on the nut

  • Supports the locking effect against selfacting loosening

Protection of the counter layer
(conductor material (CU/AL), GRP, etc.)

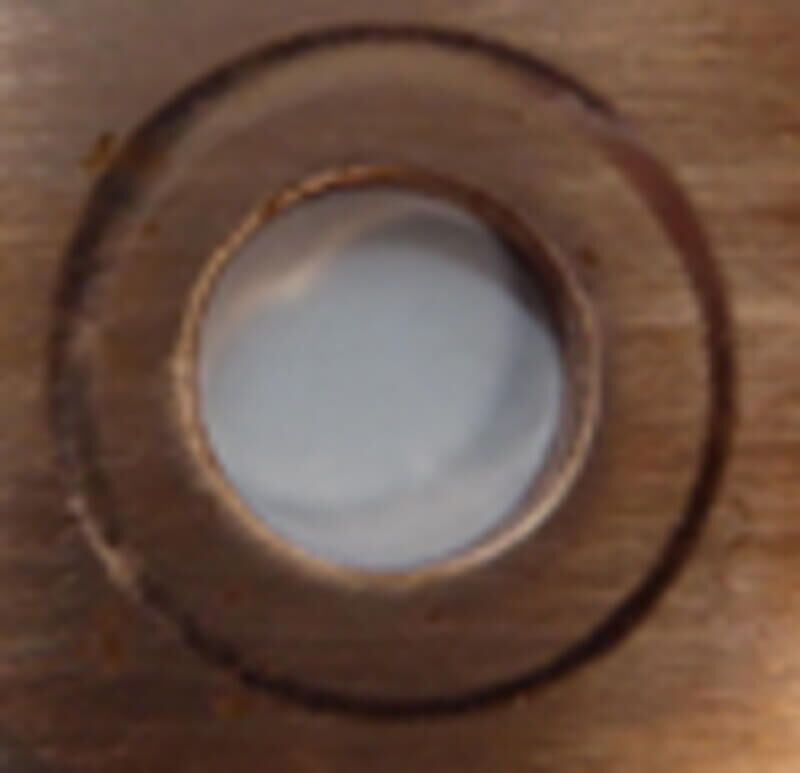

Contact marking NSK-E
(conductor material (CU/AL), GRP, etc.)

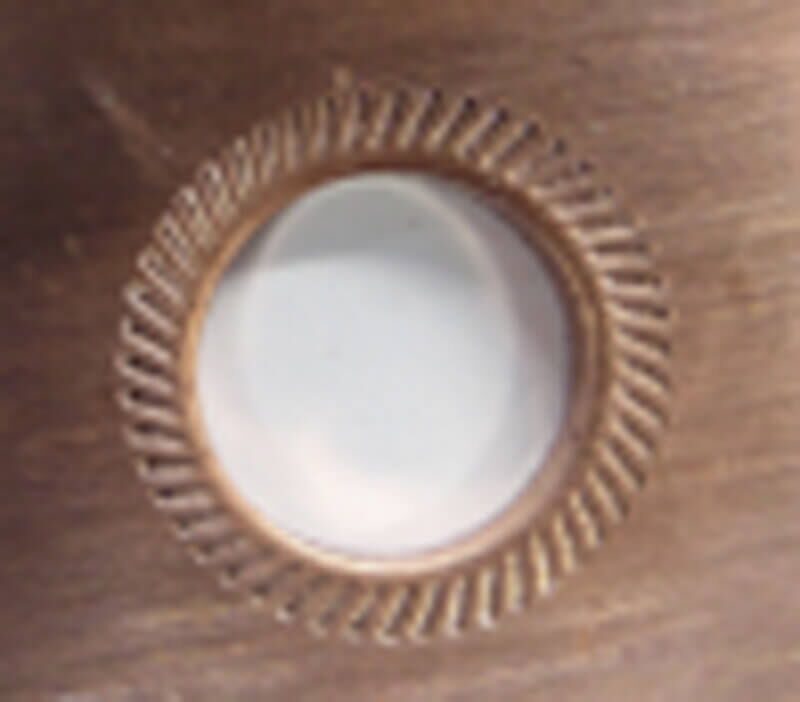

Usual contact markings
(conductor material (CU/AL), GRP, etc.)

How are NSK-EL tested?

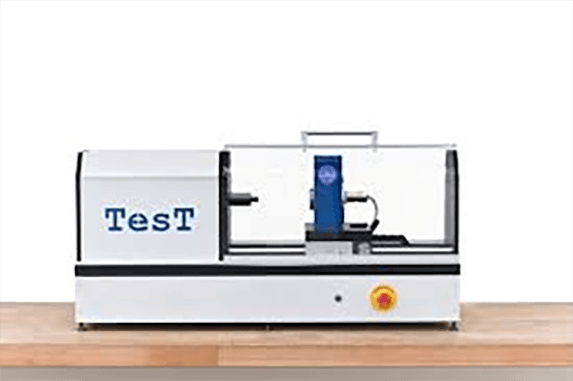

Friction coefficients are determined in accordance with DIN 16047
The decisive factors for a constant and defined coefficient of friction with low tolerance are:
a.) the form of the connecting element
b.) the surface coating of the connecting element

Minimum residual spring force test according to DIN 267-26
Force measurement, if the screw connection is relieved by 20μm (Technical specifications for conical spring steel washers for bolted joints)

Vibration test according to DIN 65151 & DIN 25201-4 Annex B.
Application-orientated testing based on the requirements of DIN 25201-3. With samples made of copper material, slotted holes and with reduced preload forces.

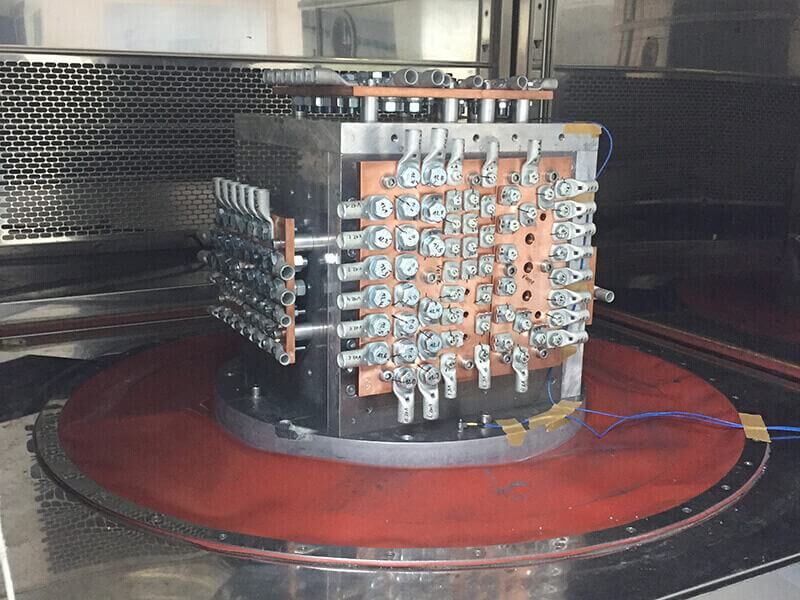

Vibration / temperature shock method IEC 61373
Testing of mechanical/dynamic component strength Vibration and for rail vehicles

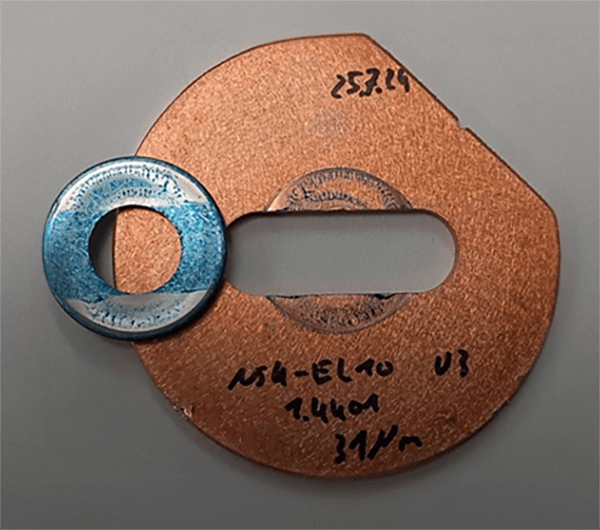

Pressure cone test

Deflection tests

The functional properties and tests for slotted hole connections are not defined in standards. The tests, carried out by teckentrup SLI, are used for orientation.
The properties and testing methode for slotted hole connections must be specified by the user.


Uniform pressure cone

The low boundary yield stress of the conductor materials requires a high, uniform contact pressure between the surfaces. Due to the specific shape and design, the washer has:

  • a flat form after the tighten process and
  • a contact surface with two contact-circuits after the embedding and creeping processes

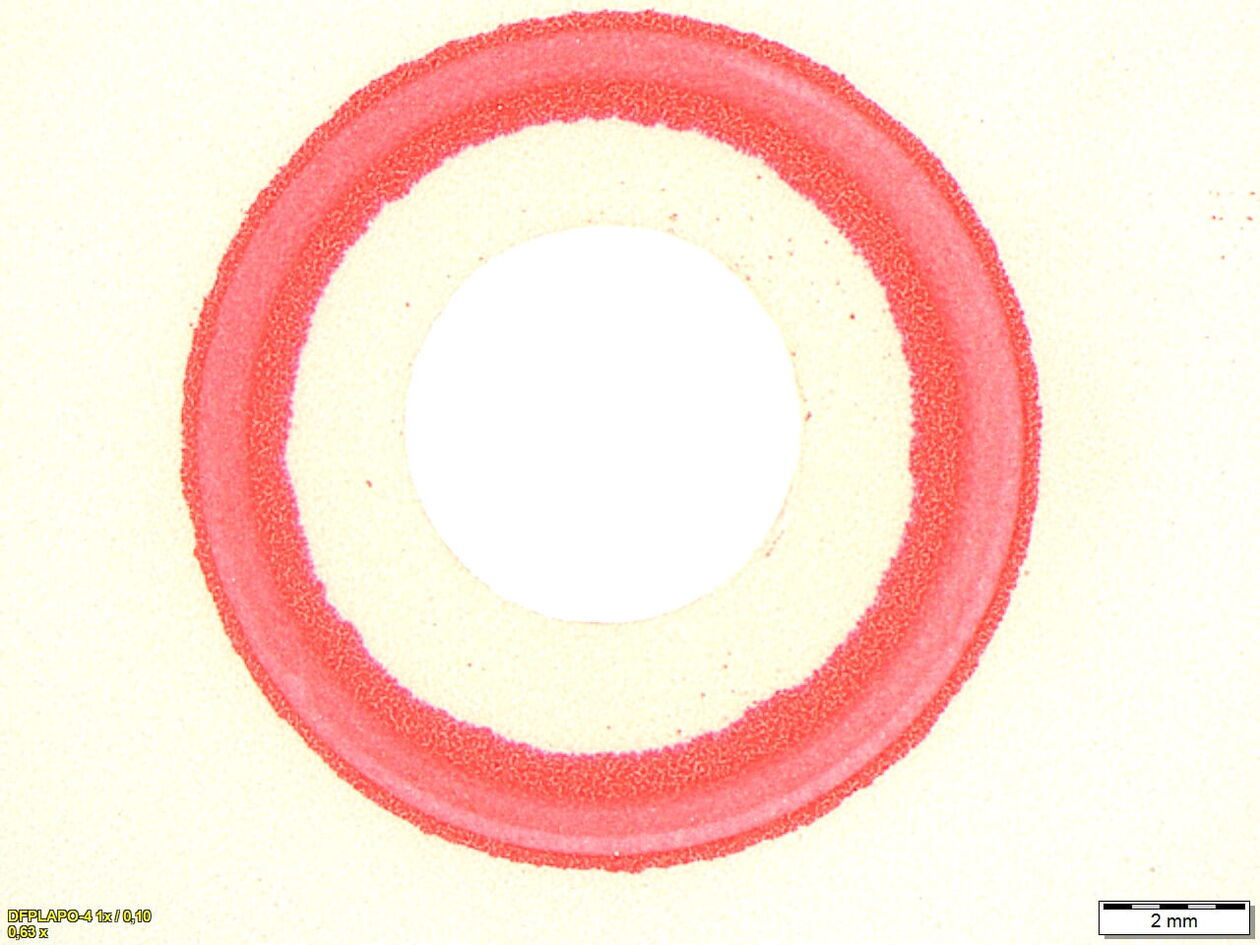

Pressure cone Clamping disc DIN 6796

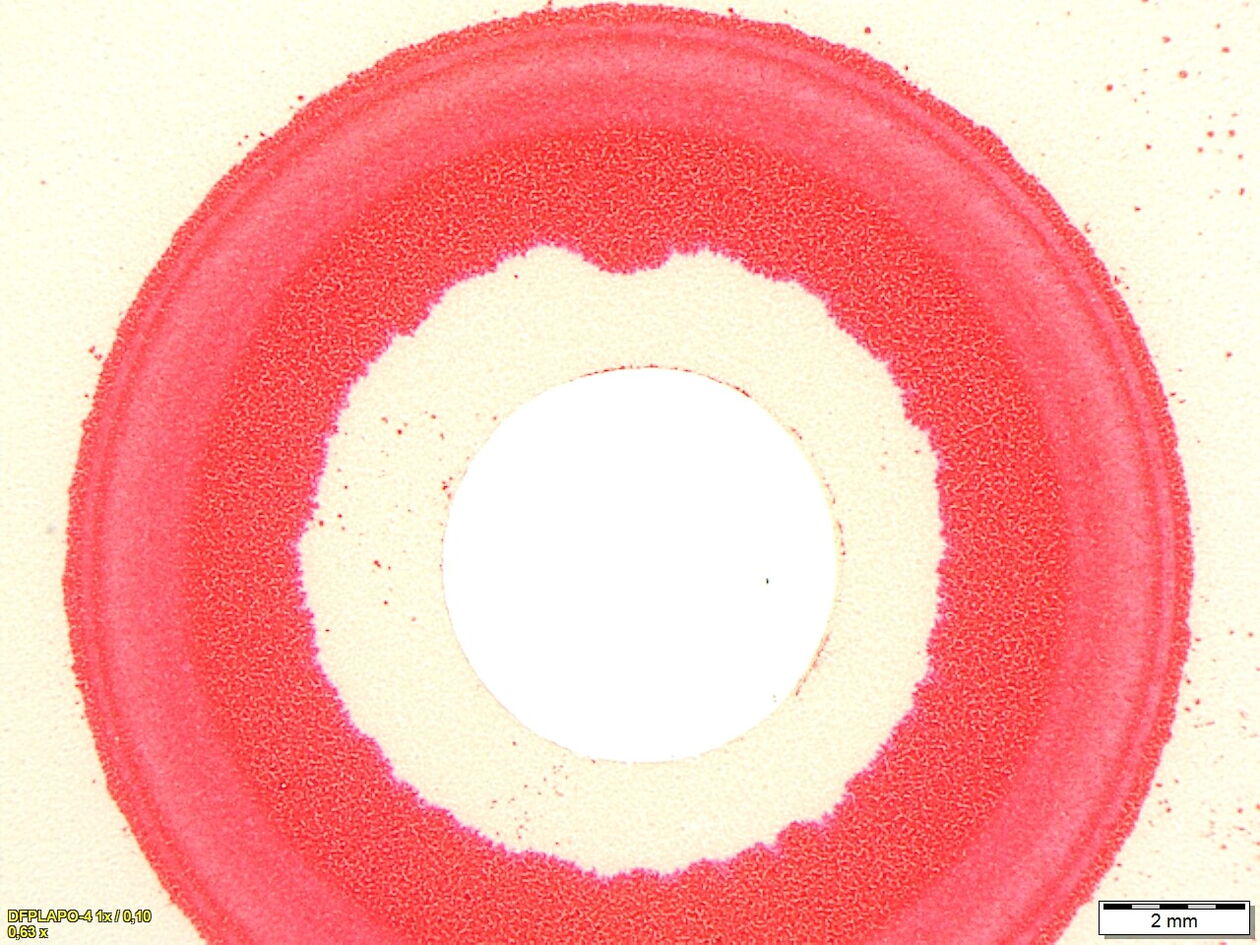

Pressure cone NSK-E

Spring steel galvanised

NSK-EL Article No. DI DA S H Weight/1.000 St. Pcs. per unit 3D Download Anfrage
NSK-EL6 070430 Ø 6.10+0.48 Ø 14.20-0.43 (1,8±0.05) (2,00+0,20) 1,78 kg 1.000 Add to request list
NSK-EL8 070440 Ø 8.20+0.58 Ø 18.20-0.43 (2,0±0.05) (2,20+0,30) 3,11 kg 1.000 Add to request list
NSK-EL10 070450 Ø 10.20+0.58 Ø 22.25-0.52 (2,2±0.10) (2,40+0,35) 4,85 kg 500 Add to request list
NSK-EL12 070460 Ø 12.30+0.58 Ø 27.25-0.52 (2,4±0.10) (2,60+0,35) 8,43 kg 500 Add to request list

Stainless steel A4 / 1.4401

NSK-EL Article No. DI DA S H Weight/1.000 St. Pcs. per unit 3D Download Request
NSK-EL6 076430 Ø 6.10+0.48 Ø 14.20-0.43 (2,0±0.075) (2,20+0,20) 1,78 kg 1.000 Add to request list
NSK-EL8 076440 Ø 8.20+0.58 Ø 18.20-0.43 (2,2±0.075) (2,40+0,30) 3,11 kg 1.000 Add to request list
NSK-EL10 076450 Ø 10.20+0.58 Ø 22.25-0.52 (2,4±0.10) (2.60+0.35) 4,85 kg 500 Add to request list
NSK-EL12 076460 Ø 12.30+0.58 Ø 27.25-0.52 (2,6±0.10) (2,80+0,35) 8,43 kg 500 Add to request list
Technical changes reserved
